Best Deals PL-40L Portable Android wireless data terminal top quality 2d qr code barcode scanner handheld terminal Best Price Online

Best Deals PL-40L Portable Android wireless data terminal top quality 2d qr code barcode scanner handheld terminal Best Price Online

Best Deals PL-40L Portable Android wireless data terminal top quality 2d qr code barcode scanner handheld terminal Best Price Online Description

If You Are Searching PL-40L Portable Android wireless data terminal top quality 2d qr code barcode scanner handheld terminal to get Best Total price Goods, Discover inside This Shop. best cost PL-40L Portable Android wireless data terminal top quality 2d qr code barcode scanner handheld terminal. See Promotions along with Promotion Right.

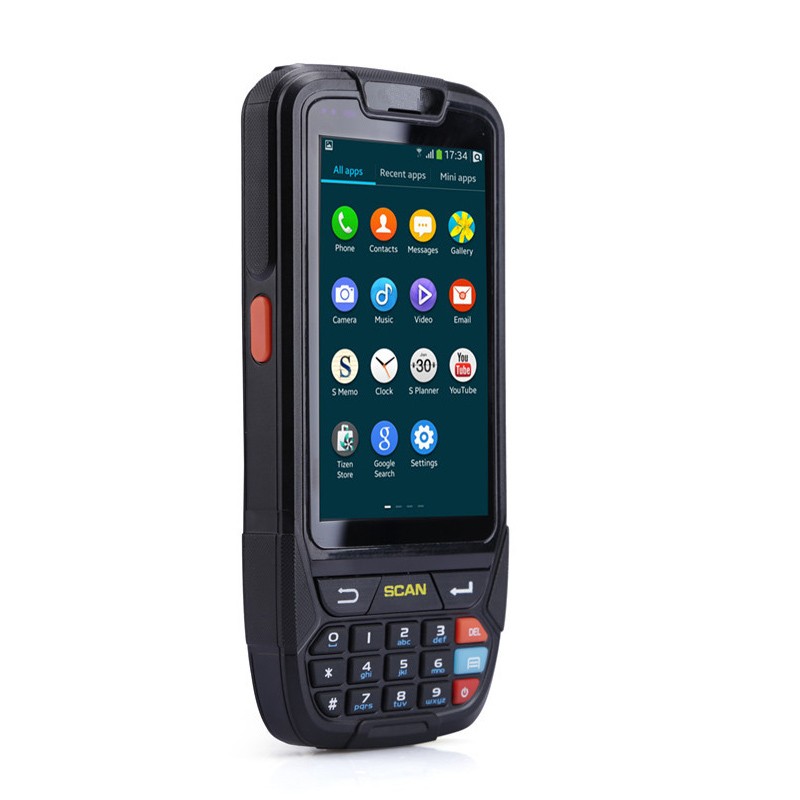

PL-40L Portable Android wireless data terminal top quality 2d qr code barcode scanner handheld terminal


NOTHING IS IMPOSSIBLE : HIGH CONFIGURATION HIGH PERFORMANCE
The standard configuration:Android 5.1+2G RAM+16G ROM+Wifi+BT4.1+GPS+1D+FDD-TLE 4G/WCDMA/GSM
                                                       +phone+8M pixel Camera+barcode scanner 1D/2D (Support google playe store)
Standard Accessories:Battery 1pcs+usb data cable 1pcs+charger 1pcs+screen protector 1pcs+package box 1pcs

Option :2D ,NFC ,LF(125K/134.2K)
Compact and Portable Ergonomic Design with wrist strap
Safedroid OS (Android 5.1) Highly optimized Android operating system.
8.0M mega pixel camera.
High capacity 4000mA large capacity battery for critical requirements;
Pogo Pin interface for convenient charging with optional charge cradle.
Industrial rugged design, water-proof and protection grade(IP65)

About Plug: We have EU plug and US plug,default send EU plug,if want US plug please leave a message on the order.

Optional: NFC/RFID  ( If you need the optional function, please click this link ) :

https://www.aliexpress.com/store/product/Android-5-1-Handheld-pos-terminal-with-NFC-UHF-RFID-reader-memory-4-inch-large-screen/2234039_32836246282.html?spm=2114.12010612.0.0.fb35c1drHXyP1
e

PL-40L technical specifications

Physical Parameter



Size

152mm(L)X77mm(H)x25mm(W)

Weight

<300g

Display Screen

Color 4.0 inch QVGA imitative glass durable touch screen

TFT-LCD, 650000 colors, 480*800 (QVGA size)

The brightness of LED Backlight is adjustable

Expand Port

SIM card, PSAM card(optional), Micro SD (TF) Card

Communication Interface

USB2.0 Device, RS-232(Optional)

Input Mode

Standard Stylus, Handwriting, touching input or keyboard input

Battery Capacity

Rechargeable Li-polymer Battery 3.7V 4000mAh

Frequency

8Ω 1W speaker

Key

21pcs soft silicon key

Performance Parameter



CPU

Quad-Core ARM Cortex-A53 CPU1.3G

RAM

2G RAM

Flash ROM

Standard 16G NAND Flash Storage

Micro SD/TF port  Max up to 32G

Data Communication



WI-FI

Support IEEE802.11b/g/n protocol, it need effective wireless LAN signal cover

4G All netcom

FDD-LTE 4G:

Uplink:  1920MHZ-1980MHZ;  Downlink:  2110MHZ-2170MHZ

Uplink:  1710MHZ-1785MHZ;  Downlink:  1805MHZ-1880MHZ

Uplink:  2496MHZ-2690MHZ;  Downlink:  2496MHZ-2690MHZ

WCDMA:

Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ

Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ

GSM:

850MHZ,  Uplink:824MHZ-849MHZ;  Downlink: 869MHZ-894MHZ

900MHZ,  Uplink:880MHZ-915MHZ;  Downlink: 925MHZ-960MHZ

1800MHZ,Uplink:1710MHZ-1785MHZ;  Downlink: 1805MHZ-1880MHZ

1900MHZ ,Uplink:1850MHZ-1910MHZ;  Downlink: 1930MHZ-1990MHZ

Bluetooth

Support Bluetooth 4.0, transmission distance is 5-10m

Operating Environment



Operating Temperature

—20 to 50

Storage Temperature

—25 to 70

Environment Humidity

5%RH--95%RH(no condensation)

Drop Specifications

6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature

Roll Specifications

1000 times/0.5m, roll on 6 sides contact area

Sealed Environment

IP65

Development Environment



Operating System

Android5.1

SDK

exclusive use software development kit

Supported Language

JAVA

Development Tool

Eclipse

A one-dimensional bar code collect



One dimensional laser scanner

Honeywell N43XX

Resolution

4Mil minimum width

Ambient Light

10000ft.candles 107640 lux

Scanning Speed

104(±)12/sec (bothway)

Scanning Angle

47º±35º(Standard) / 35º±3º(narrow angle)

Support Bar Code Type

UPC/EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS

Two-dimensional bar code acquisition



CMOS Scanner

Honeywell 3680

The Sensor Resolution

752(level)x480(vertical)pels(gray level)

Ambient Light

All dark 9000ft.candles/96900 lux

Focus element (VLD)

655nm ± 10nm

Support bar code type

PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3

RFID



LF

125K/134K;ISO11784/ISO11785 protocol

HF

13.56MHz;ISO14443A/B 15693 protocol

Camera

Hd 8.0 million pixels, with LED, automatic focusing

GPS

Support A-GPS

bcd

IMG_5228IMG_5223(20170611-005443)IMG_5219IMG_5220IMG_5208(20170611-005552)IMG_5224IMG_5209(20170611-005529)IMG_5201





f

12345678910



HTB1LSvYJFXXXXaiXVXXq6xXFXXXy

Shipment:

-- We will ship the items in 3-5 business days after verification of the payment and confirming the order.

-- Please leave completed and correct address, so as to make sure the parcel will be sent to the buyer without any delay.

-- We do not gurantee delivery time on all international shipments due to the difference in customs clearing times in individual countries, which may affect how quickly your product is inspected.

-- Please note that buyers are responsible for all additional customs fees, brokerage fees, duties and taxes for importation into your country. The shipping cost does not include any import taxes, and the buyers are responsible for customs duties.

-- Usually, we will write lower value and mark “gift” or “sample” to help you to avoid the tax or less tax. If you need full value on the shipping bill or invoice, please let us know when you place order.

--For all free shipping items, we will send them to the buyer via CHINA POST AIR PARCEL or HONGKONG POST AIR PARCEL .  The delivery time will be different depending on the different countries, which will be 15-50 days.

-- If the buyer need the fast delivery, DHL, FEDEX,UPS,TNT,EMS are all available (5-15 Days). The buyer can select the different shipping ways considering of the different shipping fees and delivery time when place the order.

After-sales service:

-- We provides products with best price in the market.

-- We are factory direct, wholesaler welcome.

-- Any questions please email to us.

-- The photos are just for illustration purposes only.

-- For any reason you are not satisfied with your purchase, please contact us by email to resolve any issues there before leaving feedback. We will reply you ASAP.If you have any questions about the product or policy, please email us before bid.

--If you don\'t receive the parcel,please check your order number and then contact us.

--Your satisfaction and positive feedback is very important to us.Please leave positive feedback and 5 stars if you are satisfied with our items and services.If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.We will do our best to solve any problems and provide you with the best customer services.

-- Thank you!
