Product Description

Note: This link for China Intel 6th Gen DDR4 i3 i5 i7 processor nic ethernet ports dual lan itx motherboard Q170 desktop mini PC board 4k, barebone means no ram no storage  no  cpu  on the motherboard, if you need other configuration, please contact us directly.


Model No.

ITX-P170 VER:1.0

CPU

Support LGA1151 6th Intel® Core™ i3/i5/i7/Celeron/Pentium CPU

Chipset

Intel® H100 High speed chipset (Intel®Q170/ Q150/H170/Z170/H110 Chipset available)

Memory

2* DDR4 DIMM RAM,Support Dual Channel 2133/1866MHz RAM,Max up to 32GB

Graphic

Support DirectX12,OpenGL4.4,Support 4K/60Hz Display

1* VGA,Support resolution highest to 1920X1200@60Hz (Default,Optional with HDMI2.0)

1* DP,Support resolution highest to 4096x2304@60Hz(Optional with HDMI1.4)

1* HDMI1.4,Support resolution highest to 2560×1600 @60Hz(Default,Optional with DP)

1* HDMI2.0,Support resolution highest to 4096x2304@60Hz resolution (Optional with VGA)

Ethernet

2* RTL8111F 10/100/1000Mbps,Support Wake-on-LAN/PXE

Storage

2* SATA3.0,Transfer rate up to 6Gbps

Audio

Integrated ALC662 6 ALC662 6channel HD audio controller,Support MIC/Line-out

Expansion slots

1* PCIE3.0 X16

1* Mini-PCIE,Support SSD/WIFI(Default:SSD)

Rear I/O

1* PS/2

1* DB15 VGA(Default,Optional to HDMI2.0)

1* HDMI1.4 (Default,Optional with DP)

1* DP(Optional with HDMI1.4)

2* DB9 RS232, COM1 The 9thPin with charged function

2* USB2.0

4* USB3.0

2* RJ-45

1* Line out& MIC in

Internal I/O

1*HDMI2.0(Optional with VGA)

4* USB2.0

4* RS232(COM3 Support RS232/RS485/RS422)

1* AUDIO front panel audio connector(2*5pin)

1* FP1 front panel function buttons and indicator connector(2*5pin)

1* 24pin ATX Power 1* 4pin ATX Power

FAN

1*4pin CPU;1*4pin System Fan

BIOS

AMI 64Mb Flash ROM

System

Windows® 7/ 8.1/ 10

Watchdog

Support hardware reset function(256,0~255 Seconds)

Power supply

ATX Power supply

Operating T.

-10℃~60℃

Storage T.

-20℃~70℃

Humidity

5%-95%(relative humidity;non-condensing)

Dimension

170mm x 170mm

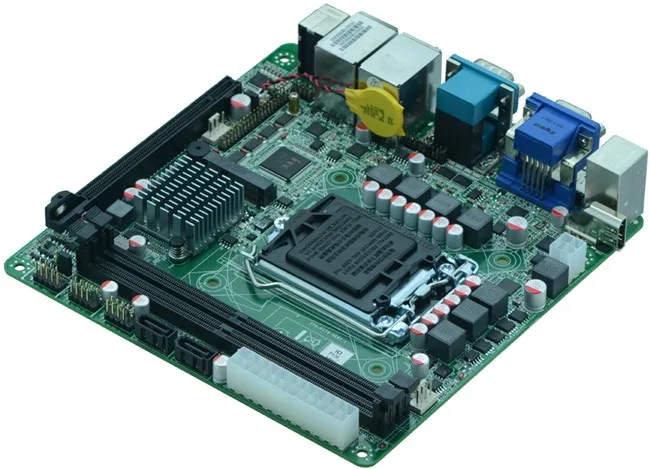

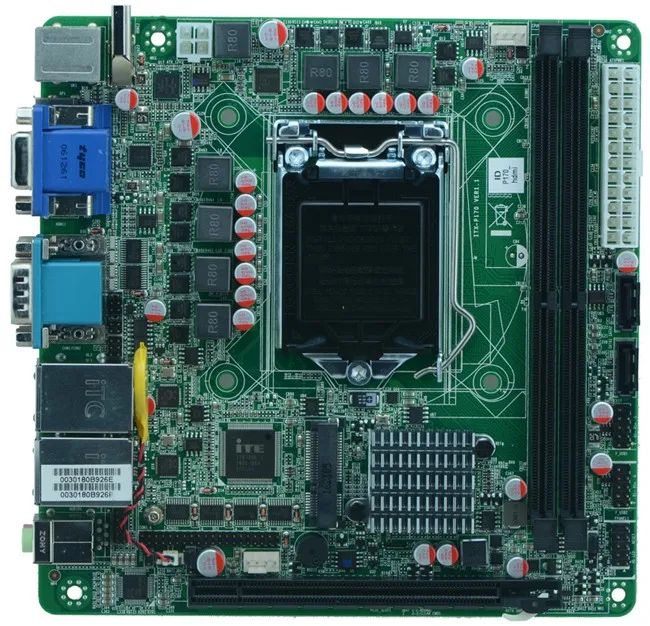

Products pictures



Order Information

No.

Model

Processor

Frequency

South bridge

Memory

VGA

HDMI

DP

LAN

USB

COM

RS485/422

Power

1

ITX-P170 VER:1.1

LGA1151

/

Q170

2*DDR4

1

1

1

2*8111F

10

6

COM3

ATX



Company Information





AOTUS ELECTRONICS, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products.

Our products include:mini-itx motherboard,all-in-one motherboard, 3.5\'\' industrial motherboard, firewall motherboard, NVR&industrial motherboard, Mini PC , HTPC,All-in-one PC,Embedded PC ,Vehicle computers,Cloud Terminal,Networking Security,OPS Mini PC,Computer,OEM / ODM available.
